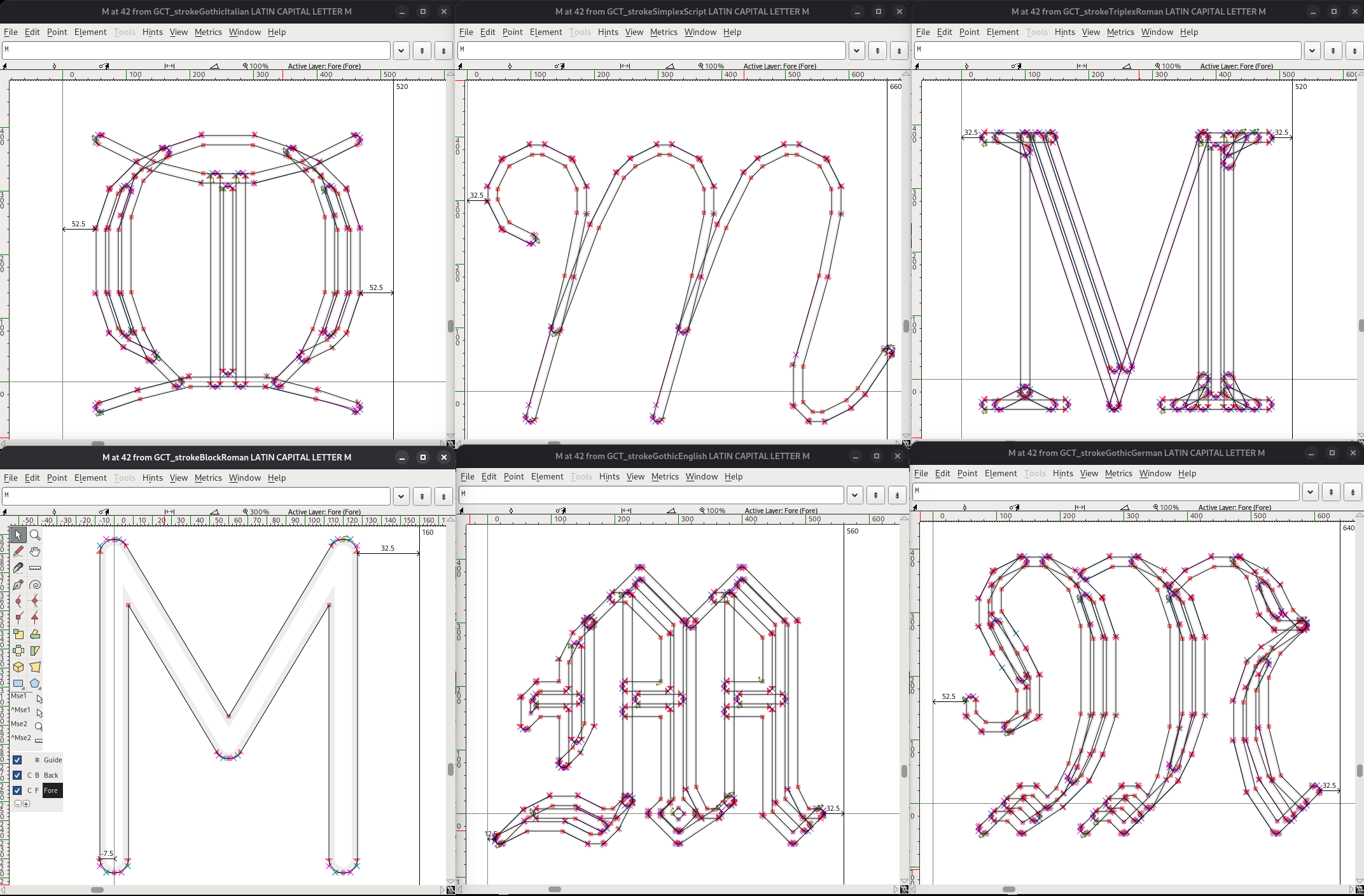

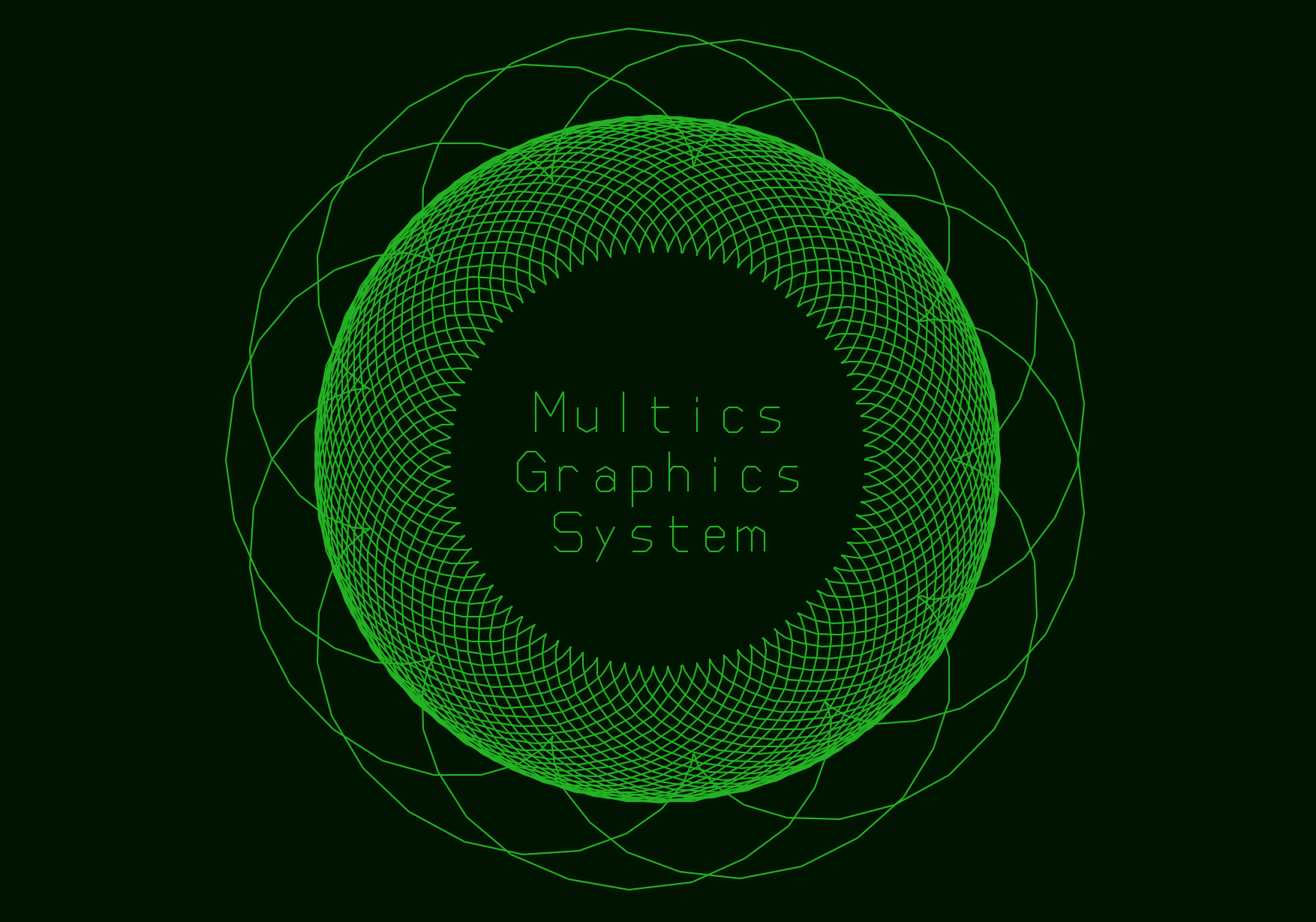

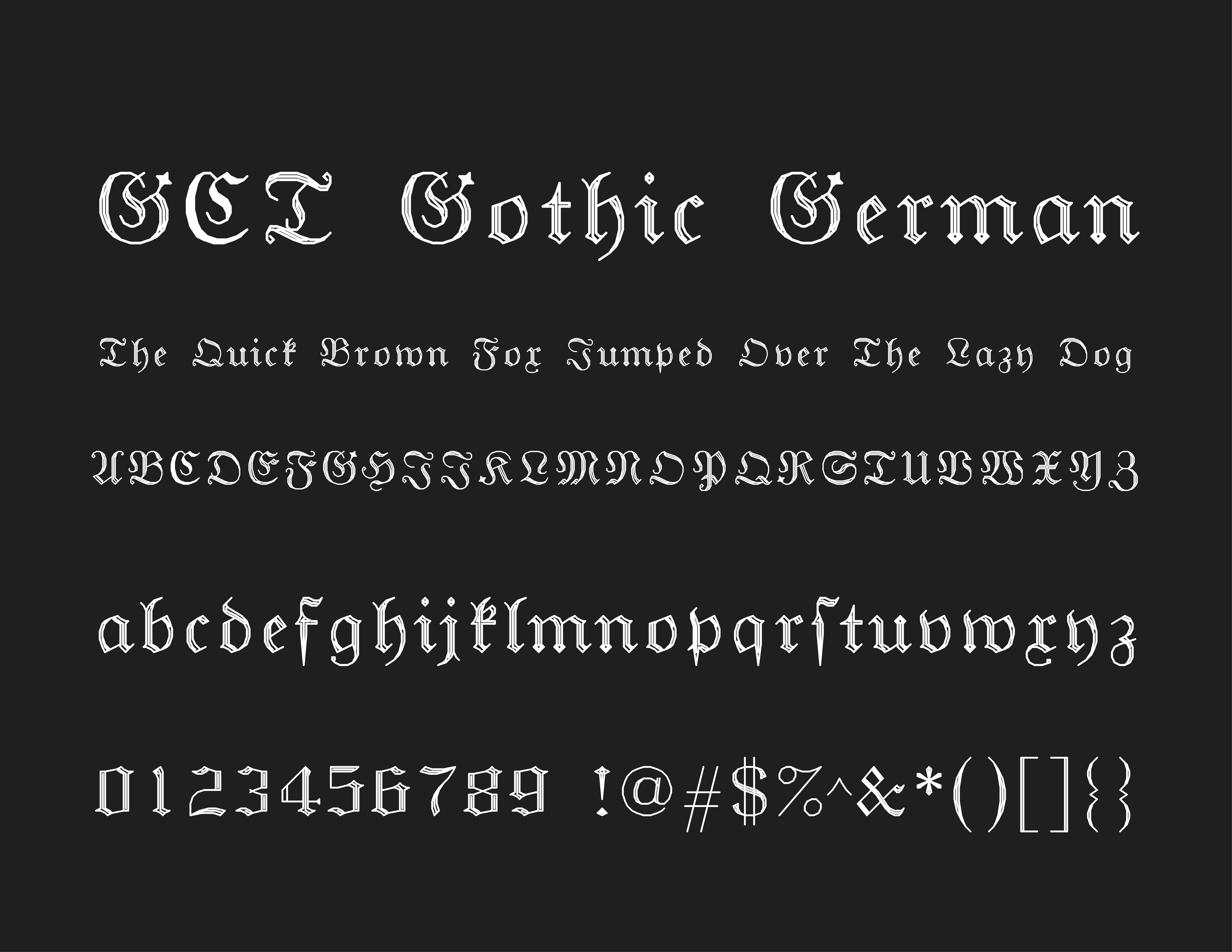

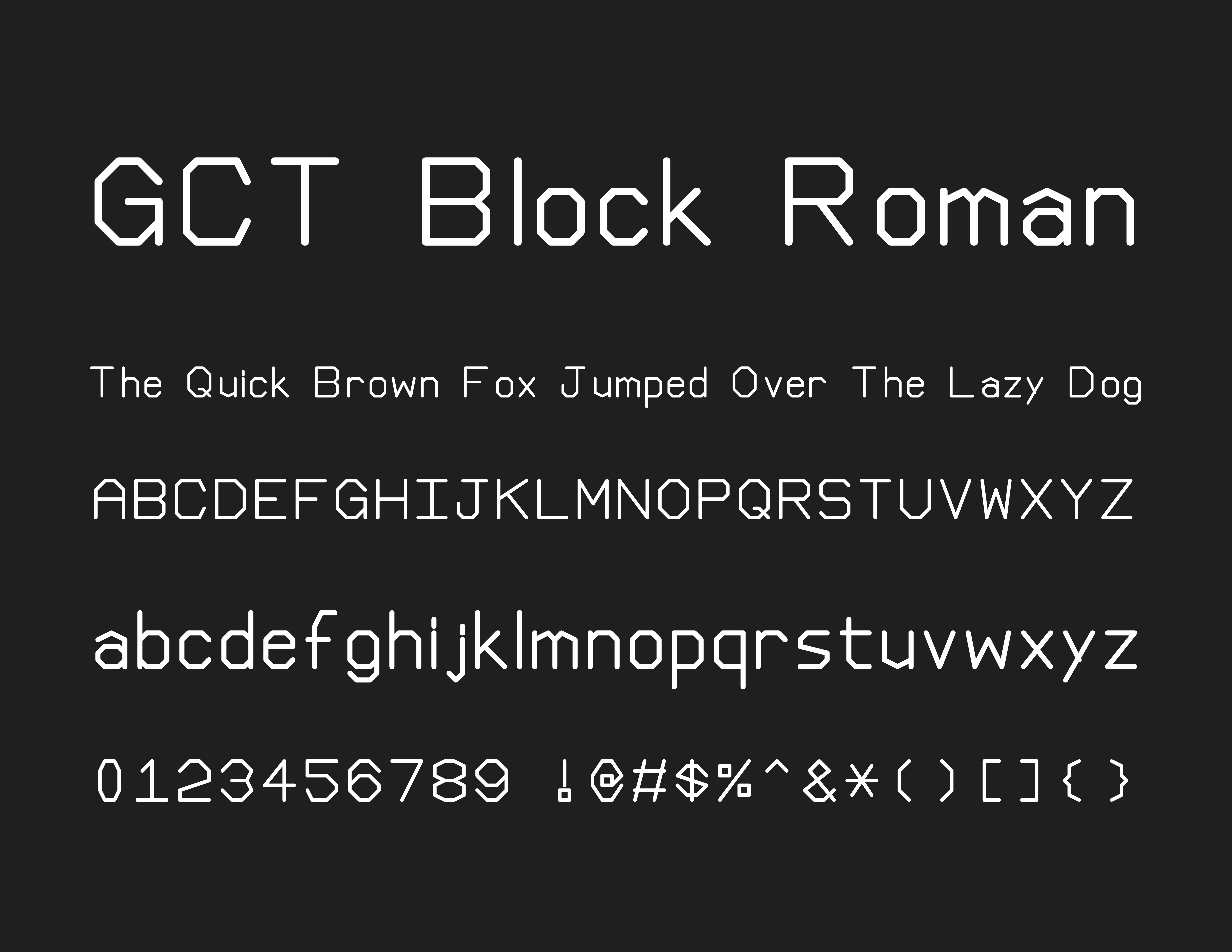

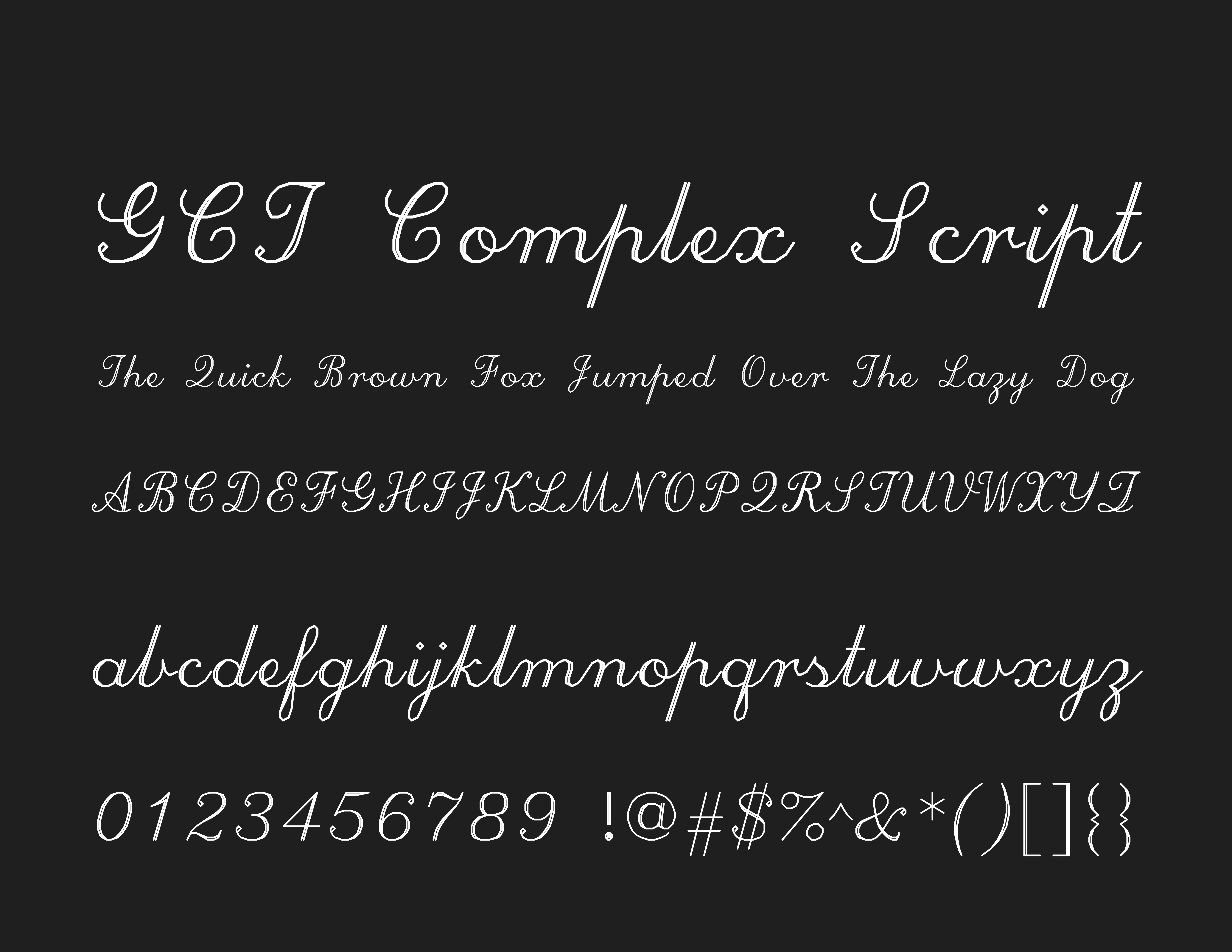

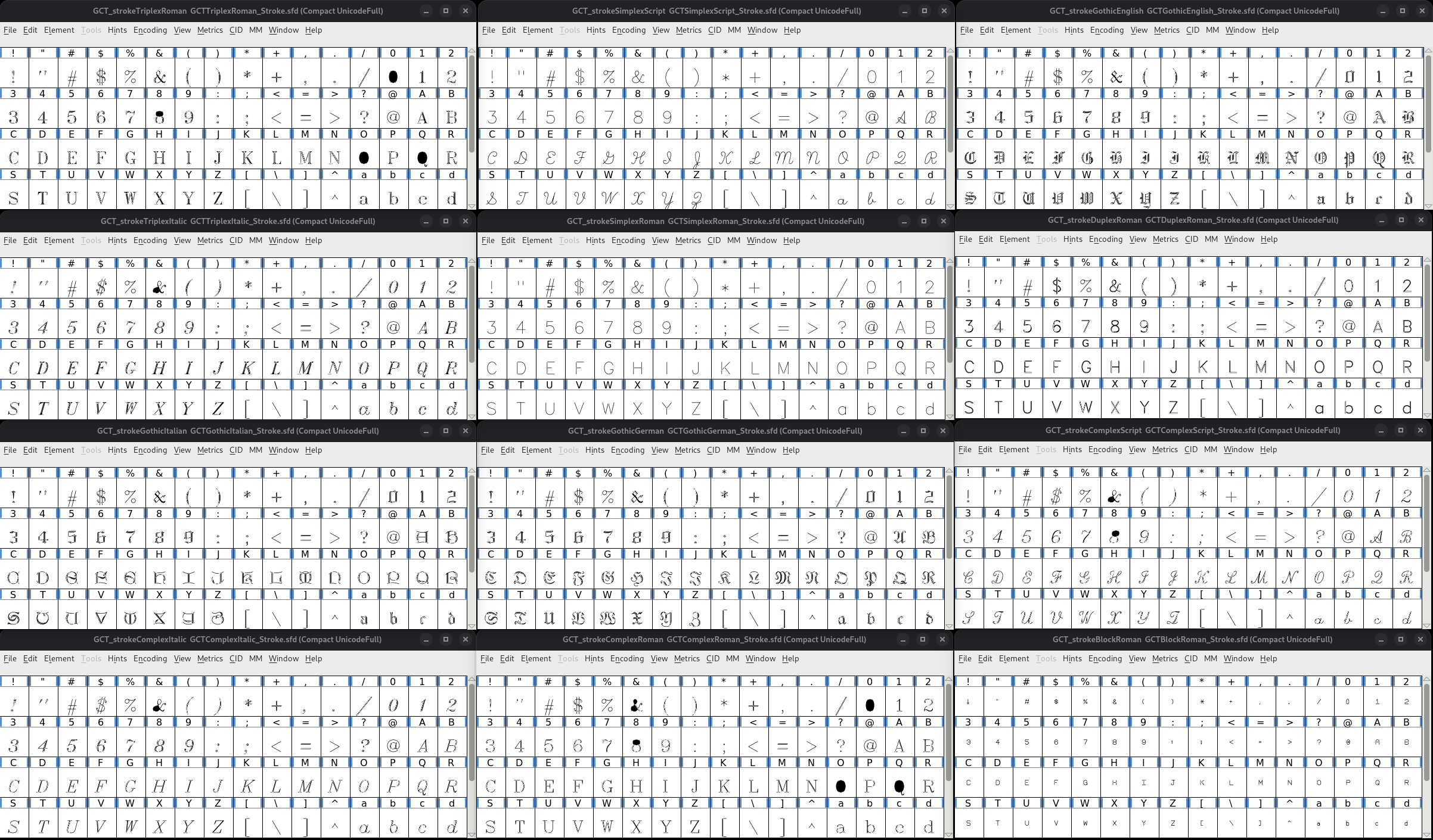

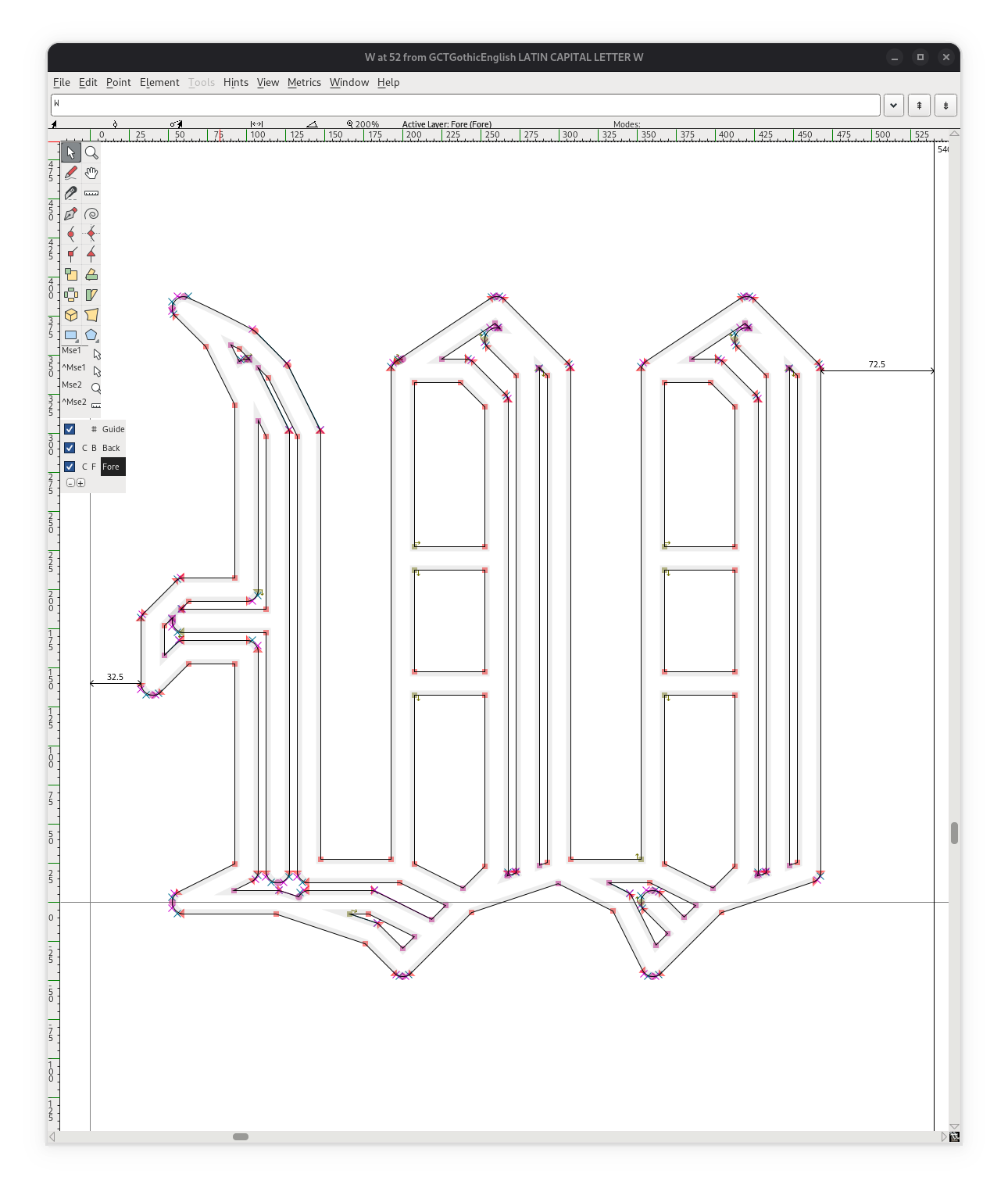

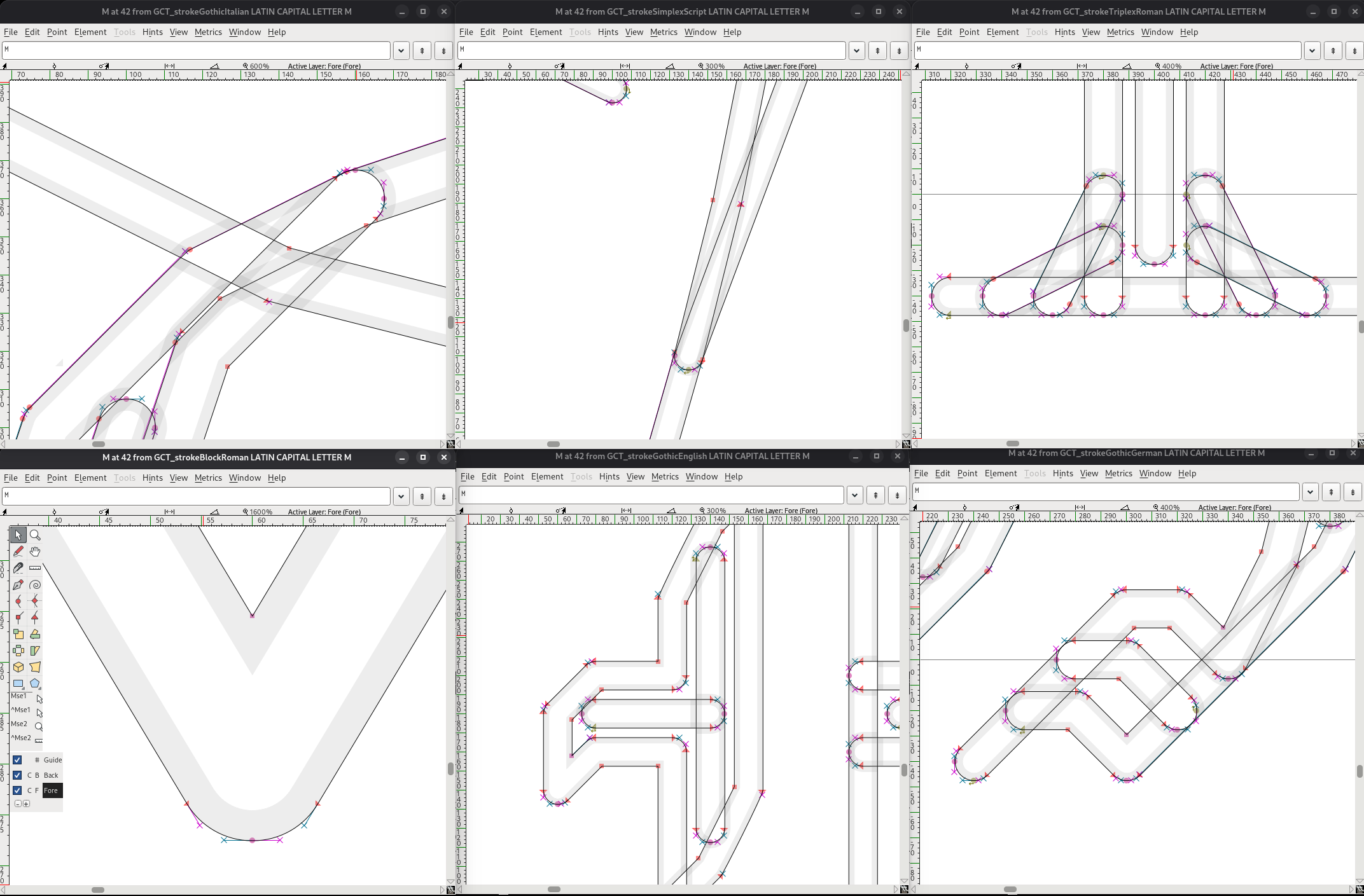

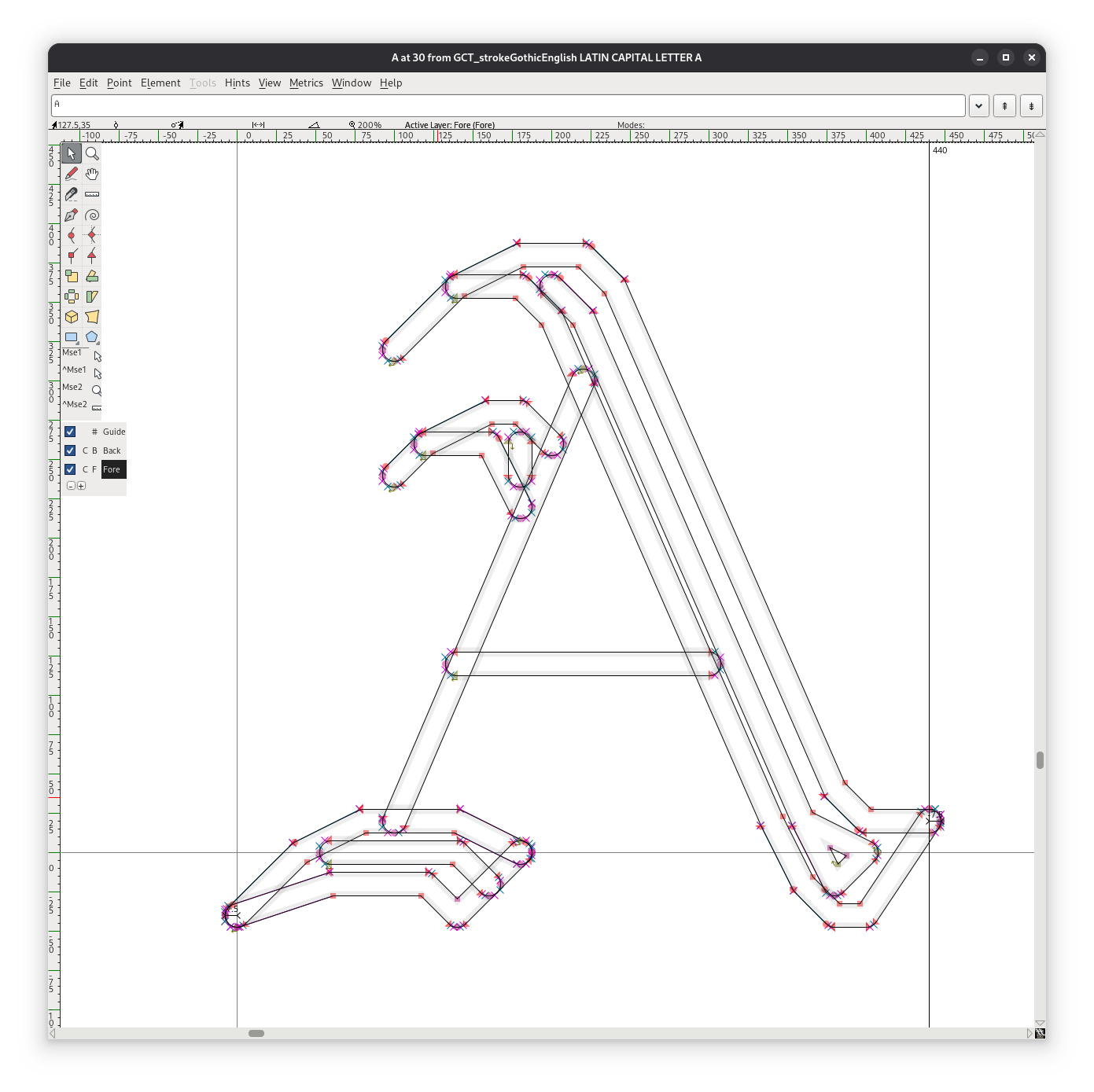

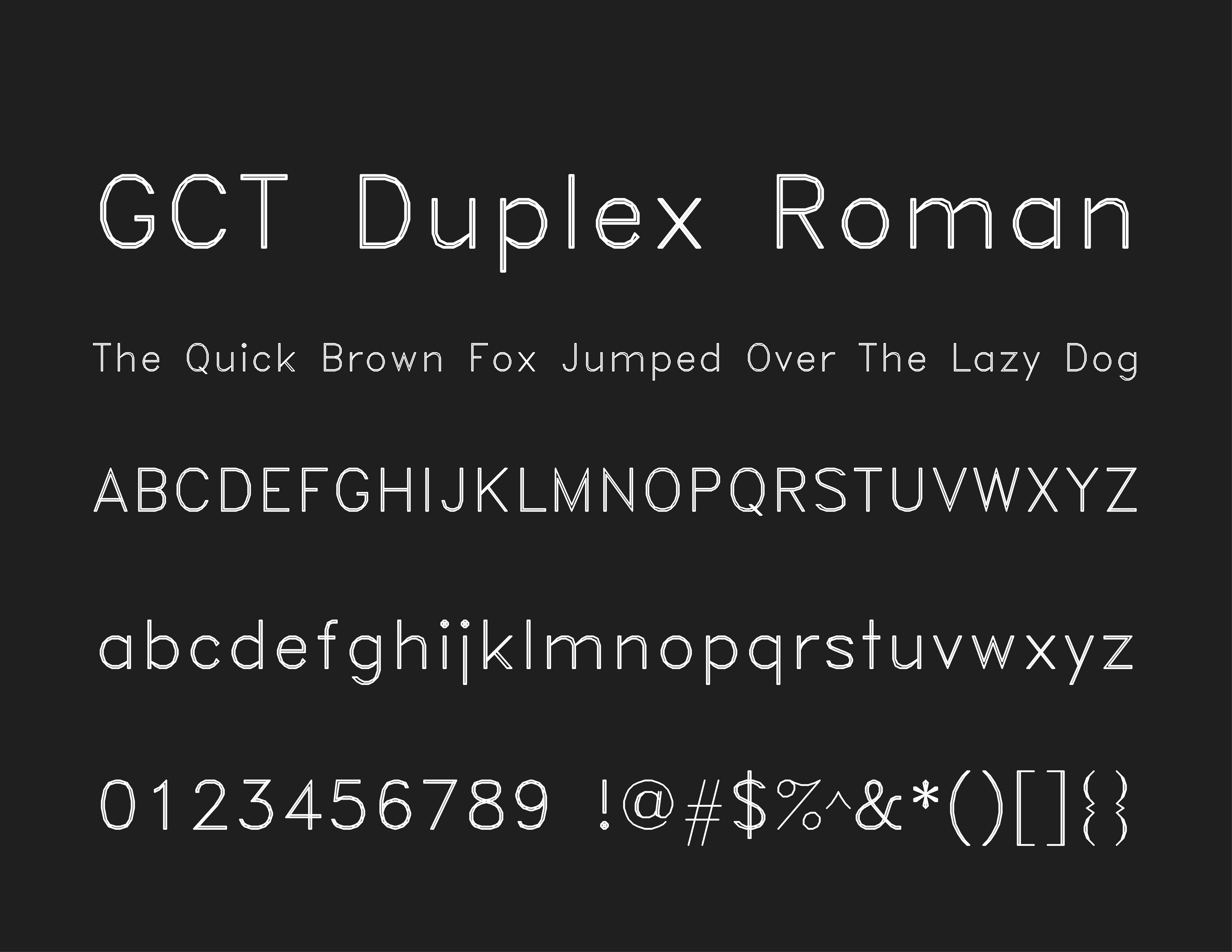

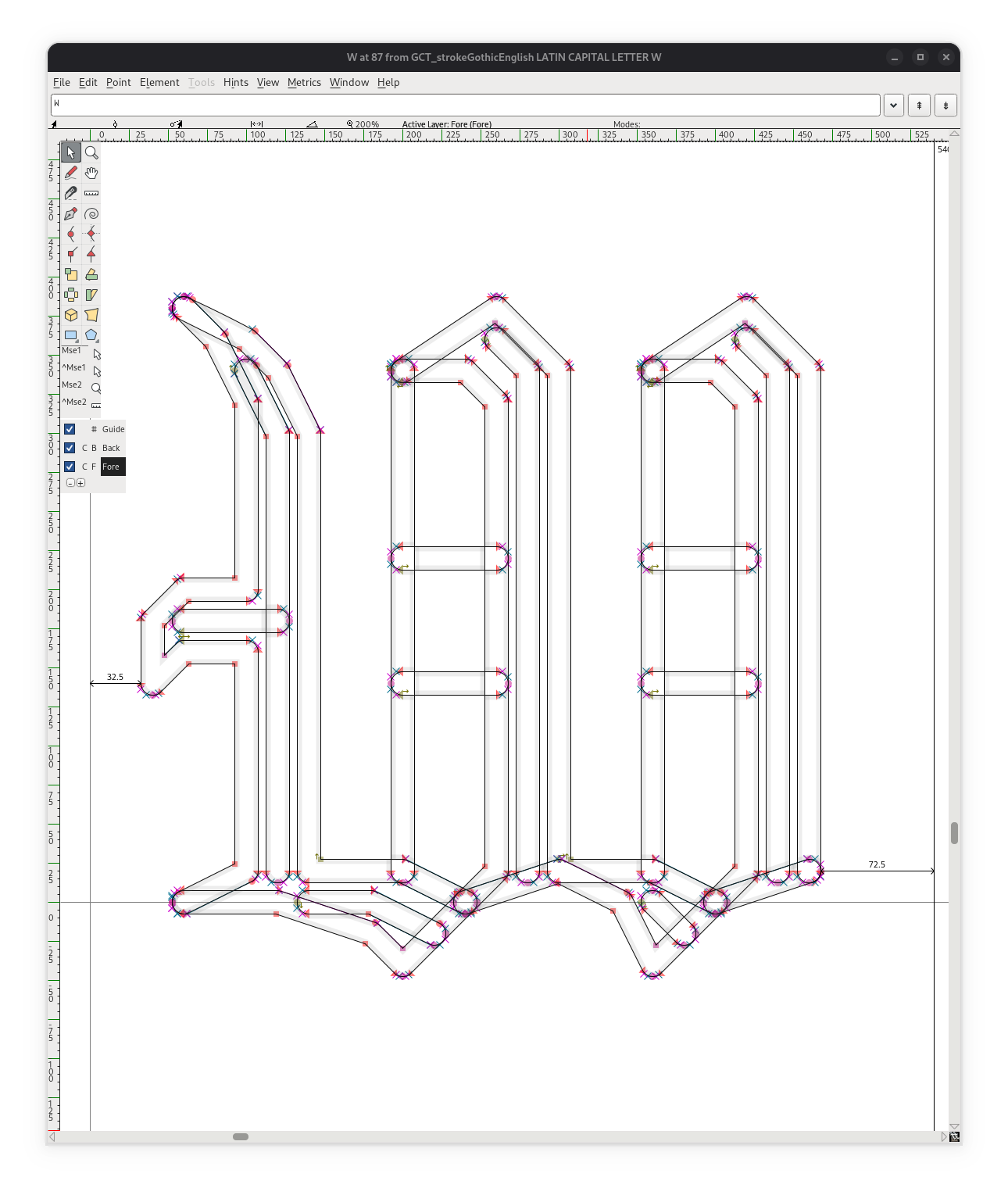

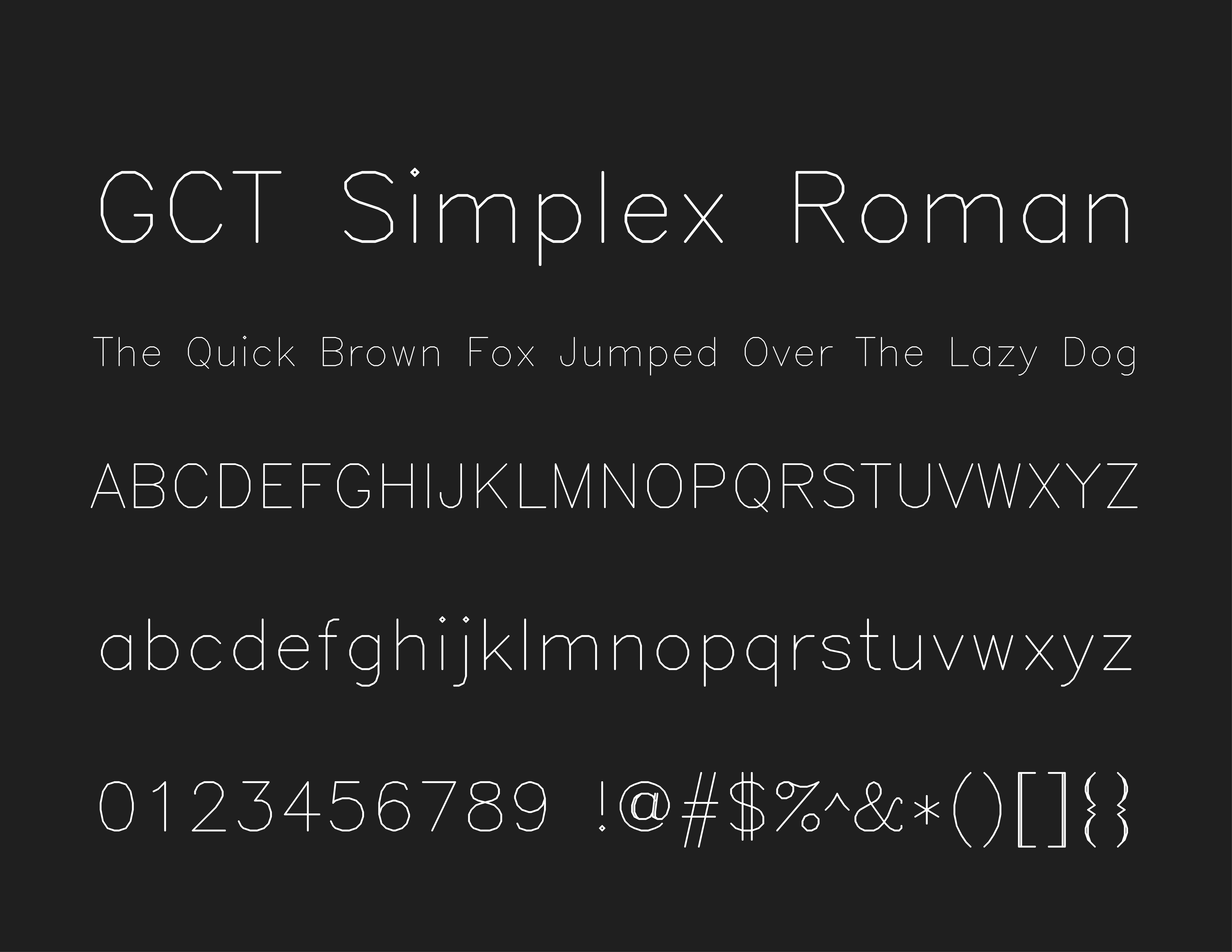

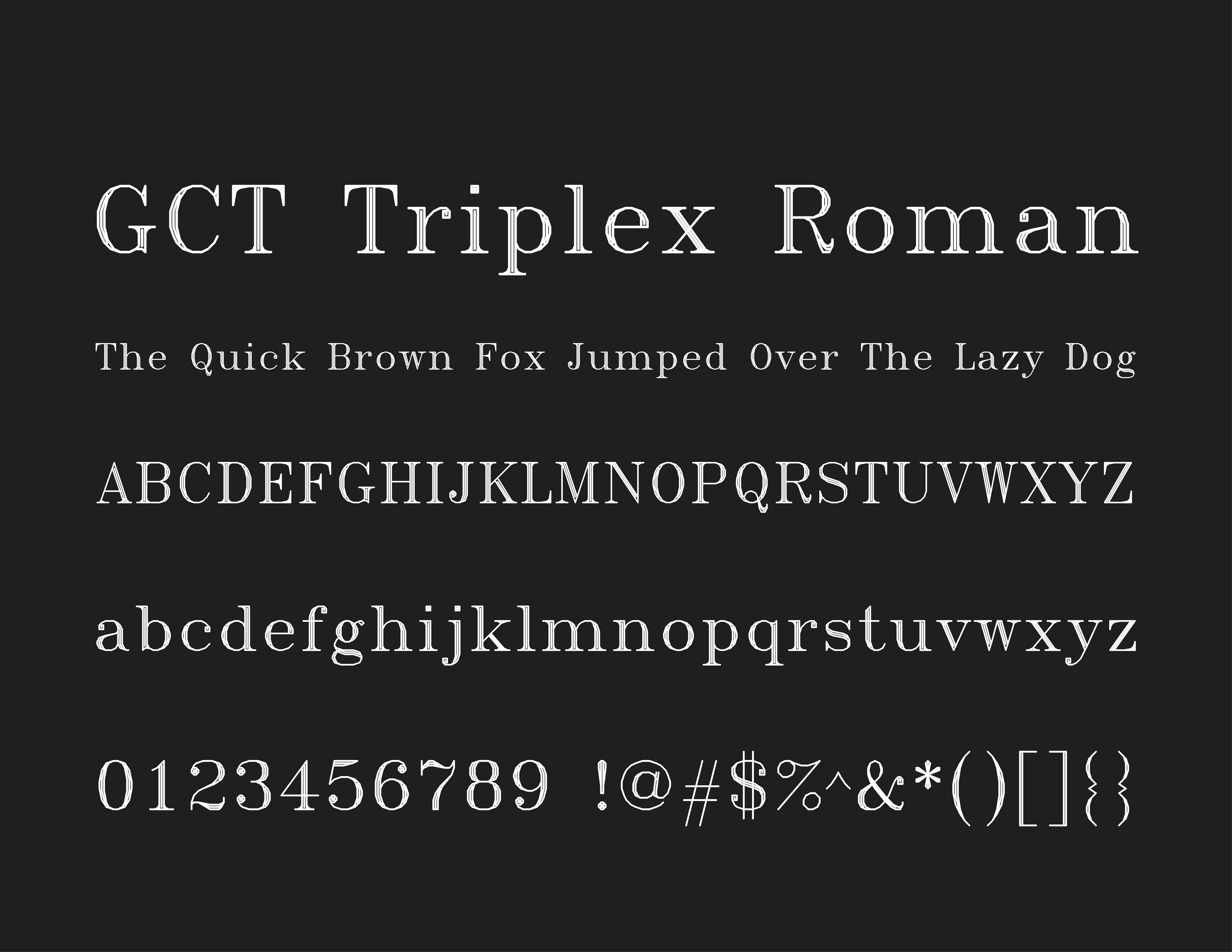

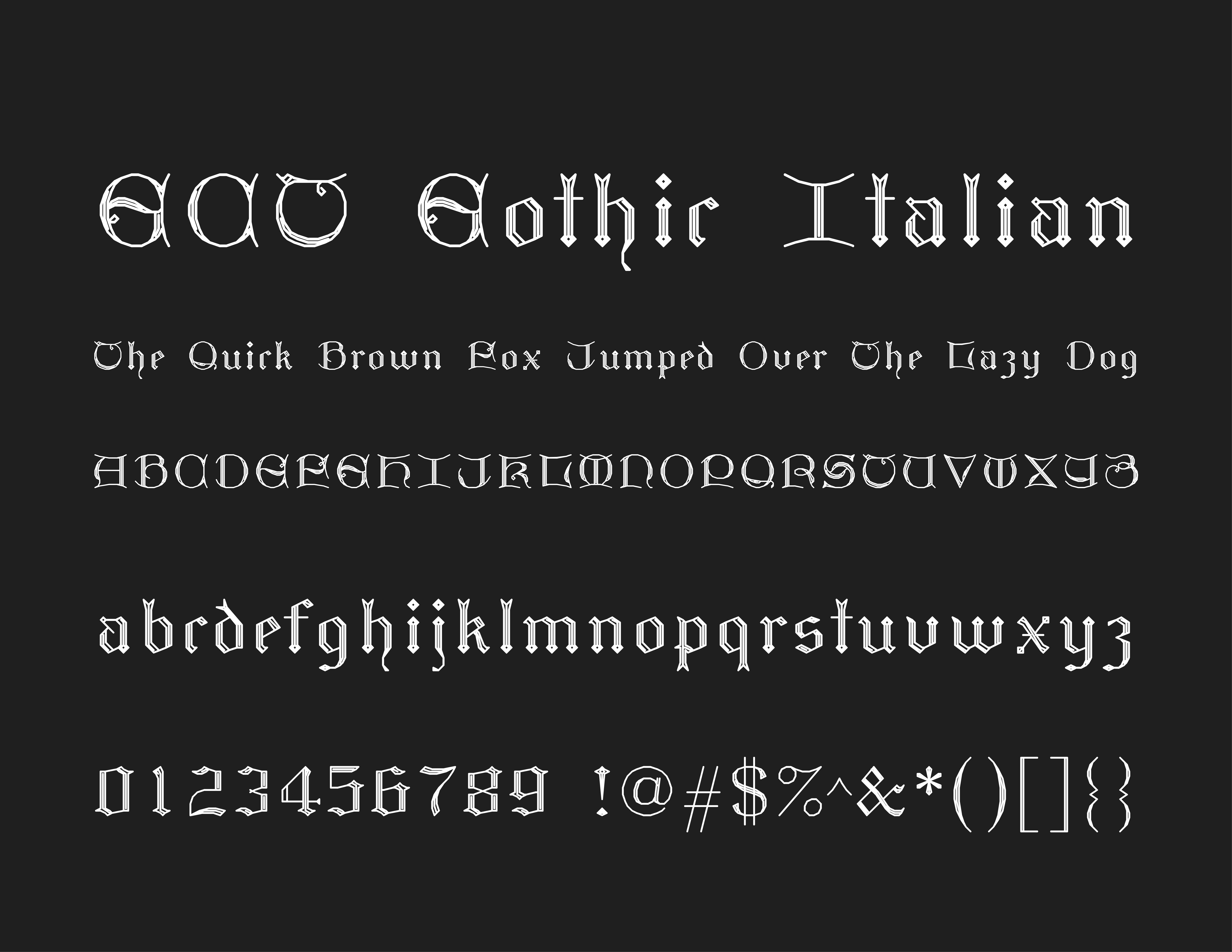

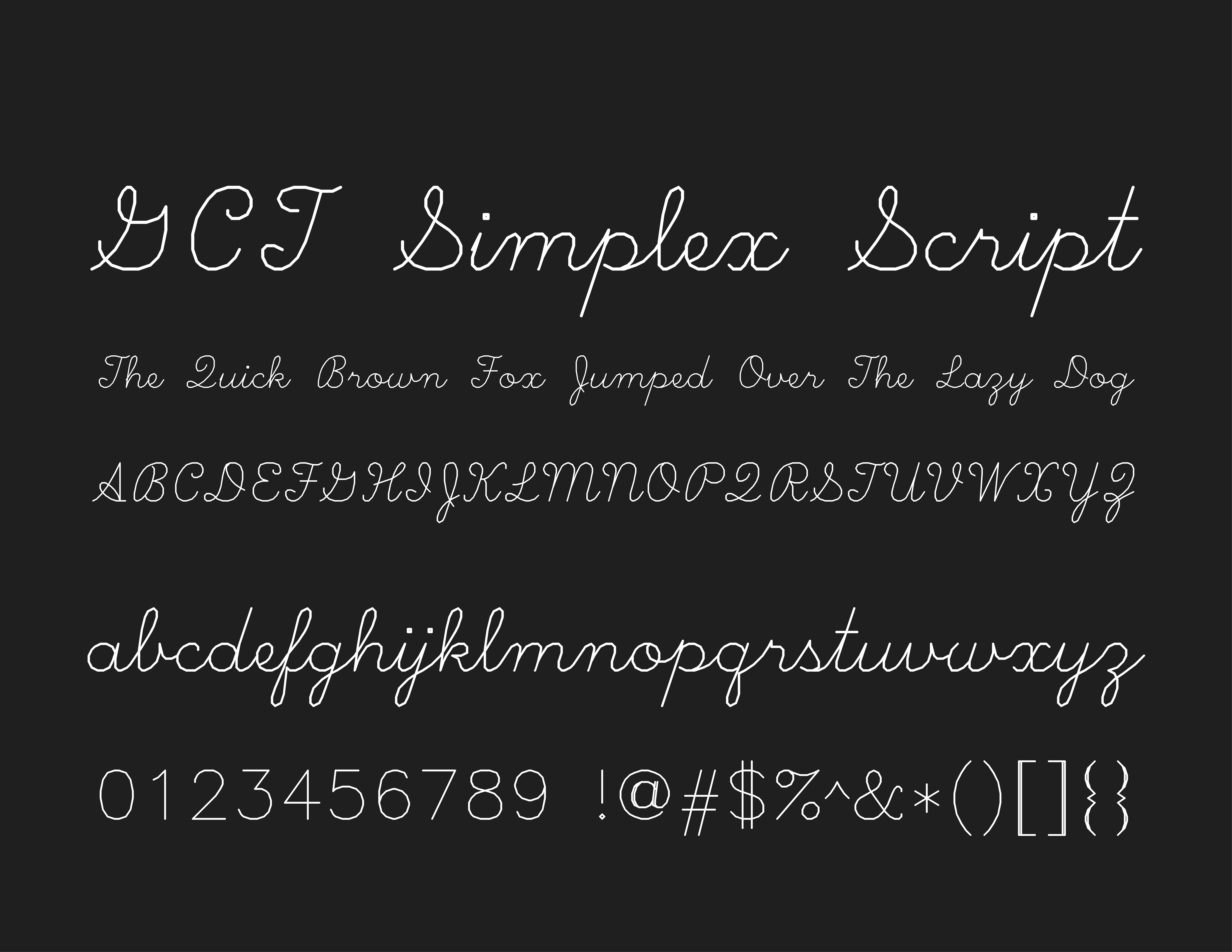

# Multics Graphics Character Tables to TrueType conversion * Impatient? * Check out the fonts as [PNG](#preview) or [PDF](https://gitlab.com/dps8m/font-gct-multics/-/raw/master/.preview/samples.pdf?inline=true) previews, or, * [**download the** ***TrueType fonts*** **here**](TrueType). ## Overview ### Background The [**Multics Graphics System**](https://multicians.org/features.html#tag110) includes a set of twelve vector fonts, based on the [Hershey fonts](https://en.wikipedia.org/wiki/Hershey_fonts) originally developed in 1967 by Dr. Allen Vincent Hershey at the U.S. Naval Weapons Laboratory, and were published and distributed in various forms by the U.S. National Bureau of Standards (now NIST, the National Institute of Standards and Technology), and NTIS, the National Technical Information Service, through the mid-1980s. This repository contains the original Multics GCT font data, **TrueType conversions** of the Multics fonts, the software developed to produce the conversions, and this *README* file intended to document the process. You can see the **Multics Graphics System** (and these fonts) in action in this [**demonstration video**](https://www.youtube.com/watch?v=-Xyaz6Yk0wM), or in print in this [brochure](https://multicians.org/multics-graphics.pdf). > While the conversion techniques and software developed here might be > applicable to the vanilla Hershey font set (or other vector fonts), these > tools were developed *specifically* to convert Multics GCT (Graphics > Character Table) files and *only* supports GCT input. Conversion of SVG, > [JHF](https://paulbourke.net/dataformats/hershey/), or other vector font > formats is out of scope for this project. ### Stage 1 The first step was to write a program to parse and render the GCT font files. Thankfully, the GCT format is straightforward and the complete source code to the Multics Graphics System is available to reference. The Graphics Character Tables are standard text files that define each glyph (character) using two commands: `vector` (for drawing "*strokes*" with a virtual pen) and `shift` (which moves the pen without drawing), using a relative coordinate system (and is actually a simplified subset of the file format used by the Multics Graphics Editor). * For example, this is the GCT data for the glyphs `L` and `l` from the *Block Roman* font: ``` L: vector 0 -8 vector 6 0 shift 2 8 end l: shift 3 -8 vector 0 8 shift 5 0 end ``` > The complete font data was extracted from > [`bound_graphic_fonts_.s.archive`](https://dps8m.gitlab.io/sb/MR12.8/library_dir_dir/system_library_unbundled/source/bound_graphic_fonts_.s.archive/) > (from [Multics MR12.8](https://multics-wiki.swenson.org)). #### Strokes Rather than simply drawing lines, it was decided that each stroke should be drawn in a way that emulates the style of lines produced by a turret pen plotter (with somewhat wide pens), as this was the output system recommended in the [original publication](https://www.google.com/books/edition/Calligraphy_for_Computers/qFFCAAAAIAAJ?hl=en) and other [historical documentation](https://www.google.com/books/edition/A_Contribution_to_Computer_Typesetting_T/8DOGhKjPAyEC?hl=en). Originally, the parser and rendering engine was written in clean C99, but this was (sadly) soon converted to Python 3 to leverage FontForge for the actual drawing of the strokes (since FontForge provides a Python 3 module). This program is available here (as [`convert_gct_stroke.py`](convert_gct_stroke.py)) and produces output for all **1,130** GCT glyphs in the Fontforge SFD ([Spline Font Database](https://github.com/fontforge/fontforge/blob/master/fontforge/sfd.c)) format. * The resulting SFD files can be loaded directly into FontForge for analysis: Note that some of the glyphs in the FontForge preview have filled interiors. This is expected at this point, only affects the preview, and can be safely ignored for now (since we will only use these files as a reference of correct stroke rendering and not for directly creating the font outlines). * You can see in the following images how the glyphs are made from a series of strokes: Notice there are no real curves at all. Everything is a series of straight lines and the rounded parts of the glyphs are created by simulating the shape of the nib of the plotter's pen. #### Conversion Unfortunately, stroke-based vector fonts are fundamentally incompatible with modern outline typography, like TrueType. TrueType fonts are "outlined" and then filled, where plotter/vector fonts are composed purely from the pen strokes as rendered above. What we need to do is draw these shapes again, but instead of pen strokes representing paths, we need closed contour outlines so a TrueType font rendering engine can fill them in. This means we have to come up with a different way of drawing these glyphs, so that we end up with fillable watertight outlines. This is a non-trivial task. TrueType font rendering depends on "direction" and is very sensitive to "nesting" and "winding", so if you draw the outlines in the "wrong" direction you'll end up with the opposite parts of the glyph filled as what you expected (or worse). There simply isn't any exact conversion of centerline-stroked polylines to closed contours (quadratic Béziers) that will *always* work. Simply converting a pen stroke (with a width from the vector centerlines) into outlines seemed to be the most feasible approximation, but it still is not a neutral transformation, as it requires careful handling of stroke overlaps (where the centerlines cross) to ensure the final rendering is properly filled. There is also a fair bit of math involved (cubic to quadratic Bézier conversion) which can introduce errors as approximation is necessary. ##### Trouble and a workaround Lucky for us, FontForge comes to the rescue here, implementing the primitives needed. Unlucky for us, FontForge often crashes when faced with complex scenarios (and when it crashes it takes down Python with it). Different versions of FontForge crash in a myriad of different ways. The Fontforge people *do* fix these problems, but many still remain. At the time of writing, there were [more than **1,000** open FontForge issues](https://github.com/fontforge/fontforge/issues) with more than **100** open issues for bugs that result in crashes or hangs. > If you are able, *please* > *[help](http://designwithfontforge.com/en-US/When_Things_Go_Wrong_With_Fontforge_Itself.html)* > FontForge by fixing bugs, or *[donate](https://fontforge.org/en-US/donate/)* > to fund the project. FontForge is the ***only*** professional and scriptable > open/free/libre font authoring solution. Working around these FontForge and Python issues required a lot extra effort, and it was very difficult for me (someone who is ***not*** a Python person, *and doesn't want to be*) to debug the problems I was encountering and find usable solutions. After many different approaches and failed attempts (**by far, fighting Python and FontForge was the largest chunk of time spent on this project by** ***many orders of magnitude***), I settled on using the standard Python 3 [`multiprocessing`](https://docs.python.org/3/library/multiprocessing.html) package to work around the problems. We are **not** using this package to add any kind of parallelism or multiprocessing support, but taking advantage of the fact we can use it to spawn a fresh Python interpreter in a new process per glyph. This way if the FontForge module crashes (or just hangs forever), it doesn't take down the entire Python process completely, and we can monitor the status of the child interpreter for crashes or hangs, soldiering on when problems are encountered. #### Outlines The actual conversion of strokes to outlines is done with the [`convert_gct_outline.py`](convert_gct_outline.py) script, which actually implements two different outline conversion methods: 1. The first method I believe should *just work* (but in reality, it doesn't). For each glyph defined in the GCT input, we create a new FontForge glyph, and using the FontForge stroke tool, we draw the glyph by tracing the original stroked lines, applying the pen width to all paths simultaneously, finally performing a cleanup of any errors and overlaps of the entire glyph at once at the end of rendering. This works for the vast majority of glyphs, producing incorrect output for a very small number of glyphs, but also hanging forever or outright crashing on others. 2. For any glyphs that failed to render using the standard method above, we use a fallback method which isn't as accurate and is much slower, involving processing each stroke independently of any other stroke, and then merging all the strokes together at the end, and then cleaning up the merged result. The second method is about ten times slower than the first method. It also seems to have much worse output in many cases, while *still* crashing or hanging on some inputs. However, by a 'stroke' of luck (*da-dum-tssss*), method #2 is able to successfully handle all the glyphs (and without crashing or hanging or looking terrible) that method #1 cannot. * The script [`run.sh`](run.sh), when run without arguments (or executed via `make stage1`) will automatically run **both** the stroke and outline conversions for all the GCTs automatically, creating a detailed log file for each font. At the end of the process, the log files are analyzed and a summary is displayed: ``` Converting GCTBlockRoman: Stroke: Success Outline: Success Converting GCTComplexItalic: Stroke: Success Outline: Success Converting GCTComplexRoman: Stroke: Success Outline: Success Converting GCTComplexScript: Stroke: Success Outline: Success Converting GCTDuplexRoman: Stroke: Success Outline: Success Converting GCTGothicEnglish: Stroke: Success Outline: Success Converting GCTGothicGerman: Stroke: Success Outline: Success Converting GCTGothicItalian: Stroke: Success Outline: Success Converting GCTSimplexRoman: Stroke: Success Outline: Success Converting GCTSimplexScript: Stroke: Success Outline: Success Converting GCTTriplexItalic: Stroke: Success Outline: Success Converting GCTTriplexRoman: Stroke: Success Outline: Success SUMMARY: 1130 total glyphs in, 1130 total glyphs out. ``` []() []() * The output from the above is archived in the [`intermediate/stage1`](intermediate/stage1) directory. ### Stage 2 The second step involves a (minimal) bit of manual work. We'll compare the canonical (stroked) version of each glyph with our newly generated outline conversion and correct any errors: * **Conversion details per font:** * **Block Roman**: **100**% (93 of 93 glyphs) converted successfully. * **Complex Italic**: **100**% (94 of 94 glyphs) converted successfully. * **Complex Roman**: **100**% (94 of 94 glyphs) converted successfully. * **Complex Script**: **98**% (92 of 94 glyphs) converted successfully: manually fixed **`R`** and **`k`**. * **Duplex Roman**: **100**% (94 of 94 glyphs) converted successfully. * **Gothic English**: **97**% (91 of 94 glyphs) converted successfully: manually fixed **`G`**, **`R`** and **`s`**. * **Gothic German**: **94**% (91 of 97 glyphs) converted successfully: manually fixed **`C`**, **`E`**, **`K`**, **`R`**, **`W`**, and **`p`**. * **Gothic Italian**: **96**% (90 of 94 glyphs) converted successfully: manually fixed **`F`**, **`L`**, **`P`**, and **`Z`**. * **Simplex Roman**: **100**% (94 of 94 glyphs) converted successfully. * **Simplex Script**: **100**% (94 of 94 glyphs) converted successfully. * **Triplex Italic**: **100**% (94 of 94 glyphs) converted successfully. * **Triplex Roman**: **99**% (93 of 94 glyphs) converted successfully: manually fixed **`w`**. []() []() * In total, **99**% (**1,114** of **1,130** glyphs) were automatically converted without issues, leaving **16** glyphs requiring manual attention. []() []() * The output of the above is archived in the [`intermediate/stage2`](intermediate/stage2) directory. ### Stage 3 The third step consists of any final editing and tweaking of the fonts, mostly metadata adjustments, before the final conversion to TrueType. * I'll be working on these files here in the [`intermediate/stage3`](intermediate/stage2) directory. While the other [`intermediate/`](intermediate) directories have files that won't change going forward, the files in [`intermediate/stage3`](intermediate/stage2) will continue to be updated (under version control). To actually build the TrueType fonts, the [`run.sh`](run.sh) script accepts the '`ttf`' option to help automate the process. You'll need to point the `ERRNUM` environment variable to the path of the `errnum` utility. For example, to build TrueType fonts in the [`TrueType`](TrueType) directory, from the top level of the repo: ```sh $ make errnum $ mkdir -p TrueType $ cd TrueType $ ln -s ../intermediate/stage3/*.sfd . $ env ERRNUM=../errnum ../run.sh ttf Converting GCTBlockRoman: TrueType: Success Converting GCTComplexItalic: TrueType: Success Converting GCTComplexRoman: TrueType: Success Converting GCTComplexScript: TrueType: Success Converting GCTDuplexRoman: TrueType: Success Converting GCTGothicEnglish: TrueType: Success Converting GCTGothicGerman: TrueType: Success Converting GCTGothicItalian: TrueType: Success Converting GCTSimplexRoman: TrueType: Success Converting GCTSimplexScript: TrueType: Success Converting GCTTriplexItalic: TrueType: Success Converting GCTTriplexRoman: TrueType: Success $ rm -f ./*.sfd ``` The above command will create the TrueType format fonts and also write a log file for each font. Since these logs are uneventful (in the case of successful conversions) I have not included them in the repository. #### Finishing touches * 2025-10-01: *Gothic English*: lowercase `z` needed a correction. * 2025-10-02: *Block Roman*: scaled glyphs and adjusted metrics. ## Preview * A [**PDF sample**](https://gitlab.com/dps8m/font-gct-multics/-/raw/master/.preview/samples.pdf?inline=true) document is also available. ## Download * [You can download the built **TrueType fonts** here.](TrueType) ## Build * The build process has been tested on **AIX**, **Solaris**, **OpenBSD**, **FreeBSD**, and **Linux**. ### Requirements * A [C99 compiler](https://gcc.gnu.org/), [Python 3](https://www.python.org/), and [FontForge](https://fontforge.org/) (with Python support). * A POSIX **shell** environment with the `awk`, `date`, `grep`, `make`, `rm`, and `sed` tools. * If your Python interpreter is not `python3`, minor modifications will be needed (*see* `grep python3 *`). ### Optional * To run the `lint` target (`make lint`) used to check the code for correctness, some additional tools are **required**: * [Black](https://github.com/psf/black), [ShellCheck](https://www.shellcheck.net/), [Cppcheck](https://www.cppcheck.com/), [Clang Analyzer](https://clang-analyzer.llvm.org/), [`reuse`](https://github.com/fsfe/reuse-tool), and [`codespell`](https://github.com/codespell-project/codespell). * [GNU roff](https://www.gnu.org/software/groff/) and [Oracle Lint 12.6](https://www.oracle.com/application-development/developerstudio/) are **optional** and will be used if available. ## Notes ### FontForge issues You need a recent version **FontForge** to successfully build the outline SFDs from the Multics GCTs. * It is *recommend* to use FontForge **based on sources from 2025-01-01 or later**. * FontForge from **Fedora 42** and **43** is known to work. * FontForge from **Ubuntu 25.04** and **25.10** is known to work (and **24.04** *seems* to work). []() []() * Older versions of FontForge are ***not*** sufficient and are **known to fail**. * FontForge from **Ubuntu 18.04**, **20.04**, and **22.04** is known to fail. * ~FontForge currently distributed by **Homebrew** is ***very*** old and is known to fail.~ *UPDATE: As of 2025-10-10, Homebrew has updated Fontforge to 2025-10-09. I have not tested it yet but it should be good enough.* []() []() * If you see warning messages such as the following, you have a **deficient** version of FontForge: \ `*** Glyph processing errors for gct_gothic_german_: 5 glyphs failed (z, l_brace, vert_bar, r_brace, tilde)` []() []() * You can check your FontForge version from the command-line with `fontforge -v`. ### `errnum` utility * [`errnum`](errnum.c) is a generally useful, portable C99 program for enhanced shell script exit status logging. * Signal status decoding is supported for `ash`, `bash`, `dash`, `ksh88`, `ksh93`, `mksh`, `oksh`, `yash`, and `zsh`. * Decoding of [`sysexits.h`](https://man.openbsd.org/sysexits.3) status codes is supported. * It can also be used interactively to decode `errno` values. []() []() * For fun, ***`errnum` was written without using any `if` statements*** (*but does contain* **50** *ternary operations*). * *If you aren't ternary maxxing in 2025, you're NGMI!* ### Availability * The canonical home of this project is [https://gitlab.com/dps8m/font-gct-multics](https://gitlab.com/dps8m/font-gct-multics). ## External links The following links are of potential interest to readers, and not previously referenced in this document: * [dps8m/misc-scripts/**svg2gct.py**](https://gitlab.com/dps8m/misc-scripts/-/blob/master/svg2gct.py) - Python tool to convert SVG 1.1 fonts to Multics GCT (Graphics Character Table) files. * [dps8m/misc-scripts/**gctinfo.py**](https://gitlab.com/dps8m/misc-scripts/-/blob/master/gctinfo.py) - Python (or standard C99) analyzer and linter for Multics GCT (Graphics Character Table) files. * [**The Hershey Fonts** with Frank Grießhammer](https://coopertype.org/events/the_hershey_fonts) - A video of Frank Grießhammer's talk about the history of the Hershey fonts (also take a look at his [**History of the Hershey Fonts**](https://productiontype.com/article/history-of-the-hershey-fonts) web page). * [**Exploring Dr. Hershey's Typography**](https://circuitousroot.com/oldstuff/hershey/index.html) - by [David M. MacMillan](https://www.circuitousroot.com/) and [Rollande Krandall](https://www.lemur.com/). * [**An Algorithm for Automatically Fitting Digitized Curves**](https://lhf.impa.br/cursos/tmg/Schneider-1990.pdf) - by Philip J. Schneider, University of Geneva, Geneva, Switzerland. * [dps8m/**font-courier-multics**](https://gitlab.com/dps8m/font-courier-multics/#courier-multics-fonts) - An MIT-licensed TrueType font derived from **Bitstream Courier 10 Pitch BT**, and used as the default font for [`prt2pdf`](https://gitlab.com/dps8m/dps8m/-/tree/master/src/prt2pdf) output. * [dps8m/**font-rosy-multics**](https://gitlab.com/dps8m/font-rosy-multics/#rosy-multics-fonts) - An OFL-licensed TrueType font designed to simulate the Honeywell/Compuprint ROSY dot-matrix printer, also included in `prt2pdf` (enabled with the `-d` option). * [dps8m/**font-bigletter-multics**](https://gitlab.com/dps8m/font-bigletter-multics/#bigletter-and-littleletter-multics-fonts) - A set of TrueType and FIGlet fonts derived from the Multics I/O daemon `bigletter_` procedure.
